Aluminum alloy load cell/ Min sensor:
Load cell (What is load cell?) is our main product category. We provide different types of load cells covering from industrial force measuring, commercial weighing and micro load cells for personal weighing appratus. Many of our products have exported to Europe, US and Mid-Asian countries. We are fully capable of designing and manufacturing customised load cells according to our customer needs.
Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. They have achieved fast and accurate weighing and force measuring. Especially after the widely use of micro processors, industrial automatic control has become much easier. Load cell has become an essential part of industrial automatic control systems. It is used in tank scales, hopper scales, hanging scales, vehicle scales, digital kitchen scales and platform scales. Electronic counting scales, platform scales ,bench and counting scales. Electronic counting scales, electronic balance, human body scales, postage scales. digital kitchen scales and postage scales,Vehicle scales, railroad scales etc hopper scales, commercial scales, and other scales or control systems that require fast and accurate force measuring.
Load cell is the heart of electronic weighing apparatus. As the rapid development of sensor technology, electronic weighing apparatus have been widely used in many industrial areas. They have achieved fast and accurate weighing and force measuring. Especially after the widely use of micro processors, industrial automatic control has become much easier. Load cell has become an essential part of industrial automatic control systems. It is used in tank scales, hopper scales, hanging scales, vehicle scales, digital kitchen scales and platform scales. Electronic counting scales, platform scales ,bench and counting scales. Electronic counting scales, electronic balance, human body scales, postage scales. digital kitchen scales and postage scales,Vehicle scales, railroad scales etc hopper scales, commercial scales, and other scales or control systems that require fast and accurate force measuring.

Applications: Electronic counting scales, platform scales etc.
Outline Size

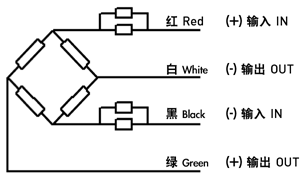

Electrical Connetion
It uses 4-core shielded cable (φ4×420mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision.
Parameters:
DIMENSIONS(mm): Size: 130x22x30 |
Thread hole: 4-M6 |
Rated load: 3~120(kg) |
Precision: Up to C3 |
Comprehensive error: 0.017%F.S & 0.02%F.S |
Insulation resistance: ≥5000MΩ(100VDC) |
Rated output: 2±0.1mV/V |
Excitation voltage: 9VDC~12VDC |
Non-linearity: 0.017%F.S & 0.02%F.S |
Compensated temp.range: -10℃~+40℃ |
Hysteresis: 0.02%F.S |
Use temp.range: -20℃~+60℃ |
Repeatability: 0.01%F.S & 0.02%F.S |
Temp.effect on zero: 0.017%F.S/10℃ & 0.03%F.S/10℃ |
Creep: 0.017%F.S/10min & 0.02%F.S/10min |
Temp.effect on span: 0.014%F.S/10℃ & 0.02%F.S/10℃ |
Zero balance: ±1%F.S |
Safe overload: 120% |
Input resistance: 405±10Ω |
Ultimate overload: 150% |
Output resistance: 350±3Ω |
Defense class: IP67&IP68 |
