Capacities (Emax)
10,20,30,40,50,60t.

Output:
Analog: 2.0mV /V.
Digital: 30, 000 or 100,000d.

Accuracy
3000d OIML R60.

Material of load cell block:
Alloy steel o r stainless steel.

Approvals
OIML R60 C erti fica te
Accuracy class C3.
Vmin= Em ax/15000

Sealed to IEC 529.

Classification IP67 or IP68.Protection against total immersion in water for 30 minutes at a
pressure corresponding to a 1 m head of water.

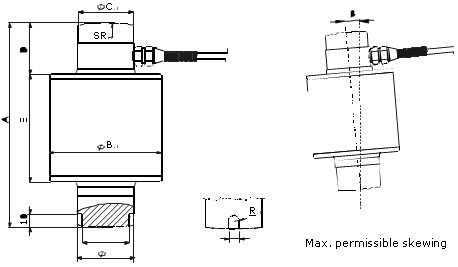

(In mm . 1mm = 0.03937 inches)

Item\ Parameter	C2	C3	UNIT
Rated load (Emax):	10,20,25,30,40,50,60		t
Maximal numbers of load cell verification Intervals(Nlc):	2000	3000	d
Minimum load cell verification intervals(Vmin)	0.02	0.01	% of rated l oad
Sensitivity(Cn):	2.0 ± 0.1%		mV/V
*Combined error:	0.027	0.015	±% o f rated output
Temperature effect on sensitivity (Tkc):	0.0024	0.0012	±% of rated output/
Temperature effect on zero balance (Tk0):	0.002	0.0008	±% o f rated output/
Zero balance:	1.0		⊥±% o f rated output
Input resistance(Rlc):	775±5		Ω(O hms )
Output resistance(R0):	701±2		Ω(O hms )
Insulation resistance:	≥5000		MΩ(M ega-Ohms)
Safe overload:	150		% of rated c apability
Ultimate overload:	300		% of rated c apability
Operating temperature range:	-30~+ 70/-20~+ 160		℃/ ℉
Recommend excitation:	12		V (AC or DC)
Maximum excitation:	24		V (AC or DC)
Material of elastomer:	alloy steel / stainless steel
Protection class:	IP67/IP68
Citation:	OIML R60 / GB7551-1997

The data for deviation of synthesis error, TKo, TKc are typicl values. The sum of these data meets the requirements according to OIML R60.

Electrical Termination
4 Core cable standard lengths: 12.0 m.
Excitation: black -Ve, red +Ve
Signal: white -Ve, green +Ve
Screen: yellow
Diameter: Ф6

Note:
Do not change length of 4
core cables, or else it will
effect sensitivity of load cell.
